What are the conditions that cause abrasive wear? Obviously, there must be a motion of particles over a refractory surface. The abrasive particles must be forced against the surface. The force may be gravity or a high-velocity gas stream carrying dust. The force can also be the weight of the limestone charge in a rotary kiln. The particles likely will be harder than the refractory surface, but that is not always the case. And larger particles, like the limestone feed to a rotary kiln, will cut faster and deeper than finer particles.

An everyday example of abrasive wear is the removal of a rust spot from the body of a vehicle with a sanding disc. We can select alumina sandpaper for the abrasive medium on the disc. Alumina is also called corundum and has a Mohs hardness of 9. Remember steel has a Mohs hardness of 4. If you are trying to remove a lot of rust, use a coarse grade of sandpaper. Now equations for abrasion have been developed, and two of the more important parameters include the force applied and the velocity of the abrasive particles. When sanding, the more force applied to the disc, the greater the amount of rust removed. The faster the disc is rotating, that is, the higher the angular velocity, rust is removed more quickly.

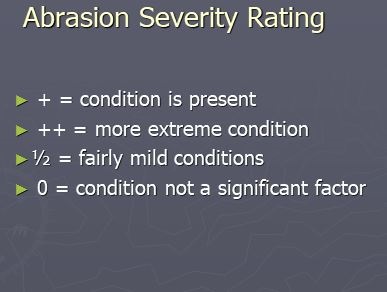

A simple rating index can be devised to describe the severity of the abrasion. Do not confuse this rating system with the cc-loss result of an abrasion test. A high abrasion severity index for an application or condition will require a LOW cc-loss refractory. In rating the application, a + sign indicates the condition is present. A ++ indicates a more extreme condition. A ½ indicates the condition is present but mild. A zero indicates the condition is not a significant factor for abrasion.

Adding the score can make a rough approximation of the abrasion severity. A severity index score of 2 or below suggests abrasion is fairly low. A score of 3 suggests the abrasion is moderate and can be handled by a regular refractory with a C-704 test result in the range of 10 cc’s loss. A severity index score of 4 suggests a severe condition, and using a high strength material, like a low-cement castable, with a C-704 test result of 7 cc’s-loss or less should be considered. A severity index of 5 or higher is indicative of an extreme condition, and an extreme-service refractory should be used.

This can be applied to an industrial application, using the rotary lime kiln process as an example.

Abrasion in a Lime Kiln Transfer Chute Refractory Lining

The lime industry uses a refractory-lined vessel called a stone preheater to improve kiln efficiency. The transfer chute is the breeching between the stone preheater, up and above, and the rotary kiln, below. During operation, rams or pushers shove the limestone off the preheater floor causing the stone to fall through the hopper onto the refractory in the transfer chute, as shown by the gray dots represent the stone in this sketch below. The gas flow is represented by the red arrows.

As a matter of review, refractory concretes/castables are blends of refractory aggregates in a bonding matrix. The matrix includes the cement binder as well as admixtures and fillers that reduce water requirements and other ingredients to control set and flow.

This sketch shows the coarser aggregate in the fine light-colored matrix. What do we need for a good resistant? One feature would be lots of bonds. 40 years ago, before the widespread use of low-cement castables, abrasion resistance castables contained lots of cement, in some cases up to 30%. What else do we need?

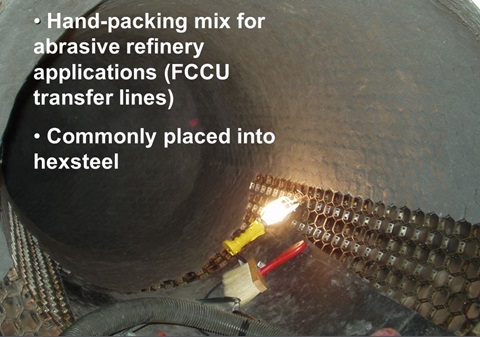

Good attachment between the binder and the aggregate, or in chemical terms, good intermolecular bonds. We touched on phosphate-bonded refractories earlier, and good intermolecular attachment is a characteristic of the alumina-phosphate bond, so it is not surprising that phosphate-bonded alumina bricks have great abrasion resistance.

The plate on the right shows a typical result of an ASTM C-704 test on a conventional, high-cement content 40% alumina fireclay castable. A fairly large cavity was eroded by the grit.

Note that the aggregate was not standing very proud, with the aggregate and the cement matrix about evenly eroded, giving a value of 20 cc’s loss.

Let’s evaluate castables with more abrasion-resistant aggregates than 40% alumina fireclay. We’ll select corundum with a Mohs hardness of 9 and then follow up with silicon carbide at about 9.5 Mohs hardness.

This is the specimen plate of tabular alumina, also known as corundum, a
high-cement content conventional castable. This material is widely recognized as having abrasion resistant properties.

R-Max extreme service products

R-MAX products were developed by Resco for its petroleum refinery market. The technology features abrasion-resistant aggregates in an extremely strong matrix. We have developed a variety of compositions for mineral processing applications in the R-MAX product family.

Our general service R-MAX products are listed here. The C suffix indicates a casting-only material. A G suffix indicates that that product is only suitable for gunning. Note that the abrasion test numbers are higher for the gunning mixes. This is because we do the abrasion plates by casting in the lab. These gunning mixes cast poorly in the laboratory and require more water than casting grades, which yields more abrasion in the C-704 test. We expect that the abrasion resistance of a gunned R-MAX lining will be better than what the cast sample laboratory tests indicate. The QT suffix indicates that the product contains QUIKTURN technology for fast dry outs. PC suffixes indicate pump casting grades, also useful for shotcrete linings.

The two photos below show one of the first R-MAX linings in a long rotary pebble lime kiln, the extreme feed end in a heat exchanger zone. Remember the heat exchanger location gets my most severe abrasion rating at a 6. After 15 months the lining looked great, a bit polished, and you can easily see the marks from the form boards. This lining was vibration cast at between 4.5% to 5% water using R-MAX C.

After 27 months, the same lining is still in great shape, although the cold joints at the edges of the pours are more pronounced. This lining is ready to give several more years of service.

Just for comparison, here are abrasion plates for R-MAX PC QT and R-MAX PC. The R-MAX PC gives an excellent result, but in comparison, the R-MAX PC QT looks a bit better. Returning to the water content for mixing, the standard water content for testing R-MAX PC is 6.5%, which is for pumping consistency and is what the plate on the right was cast at.

The R-MAX PC QT in this case was cast at a lower 5% water, typical for vibration casting. Visually you can see the importance of water content for abrasion resistance.
